XF TP Series

Truck / Van Mounted TDR / Thumper / Hipot / Burner

CFL

Just switch on, push the green start button when prompted, and in less than 60 seconds unit displays distance to fault.

Model # XF16-1280v.2TP, XF16- 2560v.5xTP, XF25-1563v.2TP, XF25-3126v.5xTP, XF28-1960v.5xTP, XF28-3920v.5xTP, XF32-5120v.5xTP, XF36-6480v.5xTP, XF36-7614v.5xTP

  • Now the most energy for those hard to find faults!
  • Features the fastest automatic TDR technology.
  • Up to 7614 joules, one of the highest constant energy joule ratings in the industry.
  • Easy 3-step operation.
  • Wet and cold weather operation.
  • Dual & tri thump capacitors up to 7614 joules.

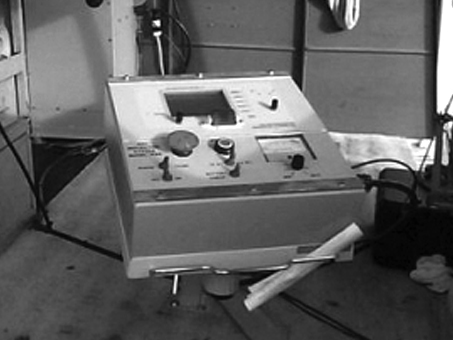

The XF TP series consists of a thumper, a digital memory radar, an arc reflection method coupler (filter) in a two-piece truck mountable configuration with a 125’ or 200’ cable reel system. All controls for the unit are on the integrated radar control unit requiring no access to the thumper/filter for operation. The control unit can be mounted in the cab or a tool bin of a truck. The watertight all aluminum thumper/filter unit is designed to be mountable in the bed of a truck or a tool bin. The unit can operate from 120 V AC or 12 V DC (optional).

Thumper SpecificationsXF16- 1280TPXF28- 1960TPXF25- 3126TPXF28-3920TPXF32-5120XF36- 6480XF36- 7614
Voltage 0-8kV; 0-16kV0-14kV; 0-28kV0-12.5kV; 0-25kV0-14kV; 0-28kV0-8kV; 0-16kV; 0-32kV0-9kV; 0-18kV; 0-36kV0-9kV; 0-18kV; 0-36kV
Thump RateApprox. every 10 SecondsApprox. every 10 SecondsApprox. every 10 SecondsApprox. every 10 SecondsApprox. every 10 SecondsApprox. every 10 SecondsApprox. every 10 Seconds
Energy1280 Joules @ 8kV and 16kV1960 Joules @ 14kV and 28kV3126 Joules @ 12.5kV and 25kV3920 Joules @ 14kV and 28kV5120 Joules @ 8kV,16k V and 32kV6480 Joules @ 9kV,18k V and 36kV7614 Joules @ 9kV,18k V and 36kV
WeatherOperation from -25° F (-31° C) to 110° F (43° C). Unit & Controls sealed for all weather operation.Operation from -25° F (-31° C) to 110° F (43° C). Unit & Controls sealed for all weather operation.Operation from -25° F (-31° C) to 110° F (43° C). Unit & Controls sealed for all weather operation.Operation from -25° F (-31° C) to 110° F (43° C). Unit & Controls sealed for all weather operation.Operation from -25° F (-31° C) to 110° F (43° C). Unit & Controls sealed for all weather operation.Operation from -25° F (-31° C) to 110° F (43° C). Unit & Controls sealed for all weather operation.Operation from -25° F (-31° C) to 110° F (43° C). Unit & Controls sealed for all weather operation.
ControlsAll controls are motorized and operated by toggle switches.All controls are motorized and operated by toggle switches.All controls are motorized and operated by toggle switches.All controls are motorized and operated by toggle switches.All controls are motorized and operated by toggle switches.All controls are motorized and operated by toggle switches.All controls are motorized and operated by toggle switches.
Input Power120V AC Standard (240V AC Optional)120V AC Standard (240V AC Optional)120V AC Standard (240V AC Optional)120V AC Standard (240V AC Optional)120V AC Standard (240V AC Optional)120V AC Standard (240V AC Optional)120V AC Standard (240V AC Optional)
Weight230 Lbs.
(105kg)		250 Lbs.
(114kg)		340 Lbs.
(155kg)		340 Lbs.
(155kg)		540 Lbs.
(245kg)
Leads25’ (7.6m) Shielded HV Lead terminated in Male MC Connector and a 25’ (7.6m) #2 Ground Cable are stan- dard to interface a Cable Reel System. 125’ (38m) and 200’ (61m) Cable Reel Systems are available. Cables from Thumper to Control/TDR 15’ (4.5m)25’ (7.6m) Shielded HV Lead terminated in Male MC Connector and a 25’ (7.6m) #2 Ground Cable are stan- dard to interface a Cable Reel System. 125’ (38m) and 200’ (61m) Cable Reel Systems are available. Cables from Thumper to Control/TDR 15’ (4.5m)25’ (7.6m) Shielded HV Lead terminated in Male MC Connector and a 25’ (7.6m) #2 Ground Cable are stan- dard to interface a Cable Reel System. 125’ (38m) and 200’ (61m) Cable Reel Systems are available. Cables from Thumper to Control/TDR 15’ (4.5m)25’ (7.6m) Shielded HV Lead terminated in Male MC Connector and a 25’ (7.6m) #2 Ground Cable are stan- dard to interface a Cable Reel System. 125’ (38m) and 200’ (61m) Cable Reel Systems are available. Cables from Thumper to Control/TDR 15’ (4.5m)25’ (7.6m) Shielded HV Lead terminated in Male MC Connector and a 25’ (7.6m) #2 Ground Cable are stan- dard to interface a Cable Reel System. 125’ (38m) and 200’ (61m) Cable Reel Systems are available. Cables from Thumper to Control/TDR 15’ (4.5m)25’ (7.6m) Shielded HV Lead terminated in Male MC Connector and a 25’ (7.6m) #2 Ground Cable are stan- dard to interface a Cable Reel System. 125’ (38m) and 200’ (61m) Cable Reel Systems are available. Cables from Thumper to Control/TDR 15’ (4.5m)25’ (7.6m) Shielded HV Lead terminated in Male MC Connector and a 25’ (7.6m) #2 Ground Cable are stan- dard to interface a Cable Reel System. 125’ (38m) and 200’ (61m) Cable Reel Systems are available. Cables from Thumper to Control/TDR 15’ (4.5m)
HV Coupler/FilterAn inductive filter is used to minimize distortion and energy loss.An inductive filter is used to minimize distortion and energy loss.An inductive filter is used to minimize distortion and energy loss.An inductive filter is used to minimize distortion and energy loss.An inductive filter is used to minimize distortion and energy loss.An inductive filter is used to minimize distortion and energy loss.An inductive filter is used to minimize distortion and energy loss.
Burner140mA
Optional		100mA
Optional		150mA150mA250mA300mA300mA
Hi Pot1ma, 10mA Current Measurement to full voltage (Optional on XF16-1280 and XF28-1960)1ma, 10mA Current Measurement to full voltage (Optional on XF16-1280 and XF28-1960)1ma, 10mA Current Measurement to full voltage (Optional on XF16-1280 and XF28-1960)1ma, 10mA Current Measurement to full voltage (Optional on XF16-1280 and XF28-1960)1ma, 10mA Current Measurement to full voltage (Optional on XF16-1280 and XF28-1960)1ma, 10mA Current Measurement to full voltage (Optional on XF16-1280 and XF28-1960)1ma, 10mA Current Measurement to full voltage (Optional on XF16-1280 and XF28-1960)
TDR Specificationsv.2 Monochromev.2 Monochromev.2 Monochromev.5x Colorv.5x Colorv.5x Colorv.5x Color
Auto AnalyzeAutomatically marks end of cable and fault location and gives distance.Automatically marks end of cable and fault location and gives distance.Automatically marks end of cable and fault location and gives distance.Automatically marks end of cable and fault location and gives distance.Automatically marks end of cable and fault location and gives distance.Automatically marks end of cable and fault location and gives distance.Automatically marks end of cable and fault location and gives distance.
Screen3.5” (8.9cm) x 4.5” (11.4cm) LCD with 320x240 dot matrix – Backlight Visible in Bright Light3.5” (8.9cm) x 4.5” (11.4cm) LCD with 320x240 dot matrix – Backlight Visible in Bright Light3.5” (8.9cm) x 4.5” (11.4cm) LCD with 320x240 dot matrix – Backlight Visible in Bright Light3.5” (8.9cm) x 4.5” (11.4cm) LCD with 320x240 dot matrix – Backlight Visible in Bright Light10.5” diagonal (243mm x 185.1mm) color LCD – Backlight Visible in Sun Light10.5” diagonal (243mm x 185.1mm) color LCD – Backlight Visible in Sun Light10.5” diagonal (243mm x 185.1mm) color LCD – Backlight Visible in Sun Light
EnvironmentalRadar contained within the sealed case of the thumper allowing all weather operation. Operable from -25° F (-31° C) to 131° F (55° C).Radar contained within the sealed case of the thumper allowing all weather operation. Operable from -25° F (-31° C) to 131° F (55° C).Radar contained within the sealed case of the thumper allowing all weather operation. Operable from -25° F (-31° C) to 131° F (55° C).Radar contained within the sealed case of the thumper allowing all weather operation. Operable from -25° F (-31° C) to 131° F (55° C).Radar contained within the sealed case of the thumper allowing all weather operation. Operable from 20° F (-7° C) to 131° F (55° C).Radar contained within the sealed case of the thumper allowing all weather operation. Operable from 20° F (-7° C) to 131° F (55° C).Radar contained within the sealed case of the thumper allowing all weather operation. Operable from 20° F (-7° C) to 131° F (55° C).
Accuracy0.5% of the range selected0.5% of the range selected0.5% of the range selected0.5% of the range selected0.5% of the range selected0.5% of the range selected0.5% of the range selected
MemoryNine Memories available. Software is also available for downloading traces to a LaptopNine Memories available. Software is also available for downloading traces to a LaptopNine Memories available. Software is also available for downloading traces to a Laptop100 Memories available. Download traces direct to USB100 Memories available. Download traces direct to USB100 Memories available. Download traces direct to USB100 Memories available. Download traces direct to USB
