XF Series Portable Arc Reflection System Portable Combination TDR Thumper

Hipot Sectionalizer

CFL

Model # XF16-1280v.2, XF25-1563v.2, XF28-1960v.5x, XF25-3126v.5x, XF28-3920v.5x

  • Features the fastest automatic TDR technology
  • Easy 3-step operation
  • Displays distance to fault in under 60 seconds
  • Highest joule ratings in the industry (of portable equipment)
  • Dual thump capacitors (1280/1563/1960/3126/3920J)
  • Operates from internal battery, 120/240 V AC, or external 12 V DC
  • Built-in battery charger
  • Multiple Voltage Options (16/25/28 kV)

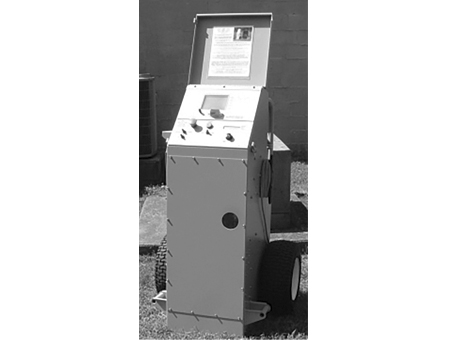

The VON XF Series is a portable combination TDR, thumper hipot sectionalizer available with monochrome or color displays. It offers the highest joule ratings for portable equipment in the industry, provides durable all weather operations and comes equipped with wide wheels for ease, mobility and stability.

Thumper SpecificationsXF16- 1280v.2XF25- 1563v.2XF28- 1960v.5xXF25- 3126v.5x
Voltage Note: voltage can be adjusted w/ knob0-8kV; 0-16kV0-12.5kV; 0-25kV0-14kV; 0-28kV0-12.5kV; 0-25kV
Thump RateApprox. every 10-15 SecondsApprox. every 10-15 SecondsApprox. every 10-15 SecondsApprox. every 10-15 Seconds
Energy1280 Joules @ 8kV and 16kV1563 Joules @ 12.5kV and 25kV1960 Joules @ 14kV and 28kV3126 Joules @ 12.5kV and 25kV
BurnerOptionalOptionalOptional150mA
WeatherOperation from -25° F (-31° C) to 110° F (43° C). Unit & Controls sealed for all weather operation.Operation from -25° F (-31° C) to 110° F (43° C). Unit & Controls sealed for all weather operation.Operation from -25° F (-31° C) to 110° F (43° C). Unit & Controls sealed for all weather operation.Operation from -25° F (-31° C) to 110° F (43° C). Unit & Controls sealed for all weather operation.
ControlsAll controls are motorized and operated by toggle switches.All controls are motorized and operated by toggle switches.All controls are motorized and operated by toggle switches.All controls are motorized and operated by toggle switches.
12V Internal BatteryStandardStandardStandardN/A
120V ACStandardStandardStandardStandard
12V DC ExternalStandardStandardStandardN/A
240V ACStandardStandardStandardOptional
Dimensions48” (1.2m) Height, 29.5” (75cm) Wide48” (1.2m) Height, 29.5” (75cm) Wide48” (1.2m) Height, 29.5” (75cm) Wide48” (1.2m) Height, 29.5” (75cm) Wide
Weight230 Lbs.
(105kg)		250 Lbs.
(114kg)		250 Lbs.
(114kg)		340 Lbs.
(154kg)
Leads50’ (15.25m) Shielded HV Lead terminated in Male MC Connector and a 15’ (4.5m) #2 Ground Cable are standard. Cable Reel Systems, EPR-X-ray Cable HV Leads and Custom Lengths are also available.50’ (15.25m) Shielded HV Lead terminated in Male MC Connector and a 15’ (4.5m) #2 Ground Cable are standard. Cable Reel Systems, EPR-X-ray Cable HV Leads and Custom Lengths are also available.50’ (15.25m) Shielded HV Lead terminated in Male MC Connector and a 15’ (4.5m) #2 Ground Cable are standard. Cable Reel Systems, EPR-X-ray Cable HV Leads and Custom Lengths are also available.50’ (15.25m) Shielded HV Lead terminated in Male MC Connector and a 15’ (4.5m) #2 Ground Cable are standard. Cable Reel Systems, EPR-X-ray Cable HV Leads and Custom Lengths are also available.
HV Coupler/FilterAn inductive filter is used to minimize distortion and energy loss.An inductive filter is used to minimize distortion and energy loss.An inductive filter is used to minimize distortion and energy loss.An inductive filter is used to minimize distortion and energy loss.
TDR Specificationsv.2 Monochromev.2 Monochromev.5x Colorv.5x Color
Auto AnalyzeAutomatically marks end of cable and fault location and gives distance.Automatically marks end of cable and fault location and gives distance.Automatically marks end of cable and fault location and gives distance.Automatically marks end of cable and fault location and gives distance.
Screen3.5” (8.9cm) x 4.5” (11.4cm) LCD with 320x240 dot matrix – Backlight Visible in Bright Light3.5” (8.9cm) x 4.5” (11.4cm) LCD with 320x240 dot matrix – Backlight Visible in Bright Light10.5” diagonal (243mm x 185.1mm) color LCD – Backlight Visible in Sun Light10.5” diagonal (243mm x 185.1mm) color LCD – Backlight Visible in Sun Light
EnvironmentalRadar contained within the sealed case of the thumper allowing all weather operation.
Operable from -25° F (-31° C) to 131° F (55° C).		Radar contained within the sealed case of the thumper allowing all weather operation.
Operable from -25° F (-31° C) to 131° F (55° C).		Radar contained within the sealed case of the thumper allowing all weather operation. Operable from 20° F (-7° C) to 131° F (55° C).Radar contained within the sealed case of the thumper allowing all weather operation. Operable from 20° F (-7° C) to 131° F (55° C).
Accuracy0.5% of the range selected0.5% of the range selected0.5% of the range selected0.5% of the range selected
MemoryNine Memories available. Software is also available for downloading traces to a laptopNine Memories available. Software is also available for downloading traces to a laptop100 Memories available. Download traces direct to USB100 Memories available. Download traces direct to USB
Additional Features3 phase display, Current Impulse Method (CIM) available as options.3 phase display, Current Impulse Method (CIM) available as options.3 phase display, Current Impulse Method (CIM) available as options.3 phase display, Current Impulse Method (CIM) available as options.
