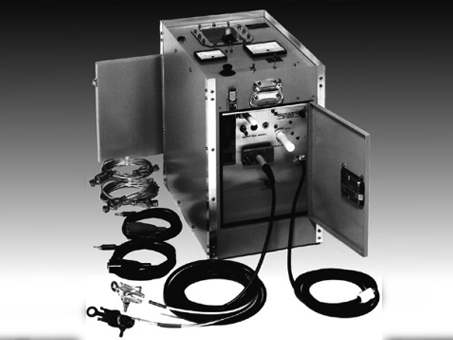

BI-.35S1

Impulse Fault Locator (Thumper) & HI-MEG D.C. Tester

CFL
  • Two-man portable unit.
  • Rugged durability.
  • 30KV capacitive discharge cable fault locator.
  • 35KV, 6MA D.C. Tester and 35KV megohmmeter.
  • The fully protected output meter in the high voltage lead indicates true leakage readings.

VON’s BI-.35S1 provides the most universally accepted way to locate underground cable faults. “Thumping“ is still the only system that works reliably on shielded cable such as URD type concentric neutral cable. This unit contains a VON continuously adjustable impulse control gap, high
reliability VON voltage doubler circuit with silicon rectifiers, separate sockets for testing and fault locating, optional built in inverter with 15 ft. battery leads that permit operation from a 12 volt truck battery, and much more.

Weight115 pounds
Width15.125” (38.5 cm)
Height24.5” (62.3 cm)
Length23” (58.4 cm) over handles
Input110-125 volts 50-400 hz A.C. or 12 volts D.C. (optional)
Impulse6 nanosecond rise time, 450 joules at 30kv continuous, up to 612 joules at 35kv intermittent, random timing (6 second cycle at 30kv)
Testing6 ma to 35kv, 1% ripple
CaseAluminum with grey finish
