BCM-44 / BCM-44B

Bare-hand Live-line work safety.

BCM

When it comes to boom current monitoring, we stay well-grounded.

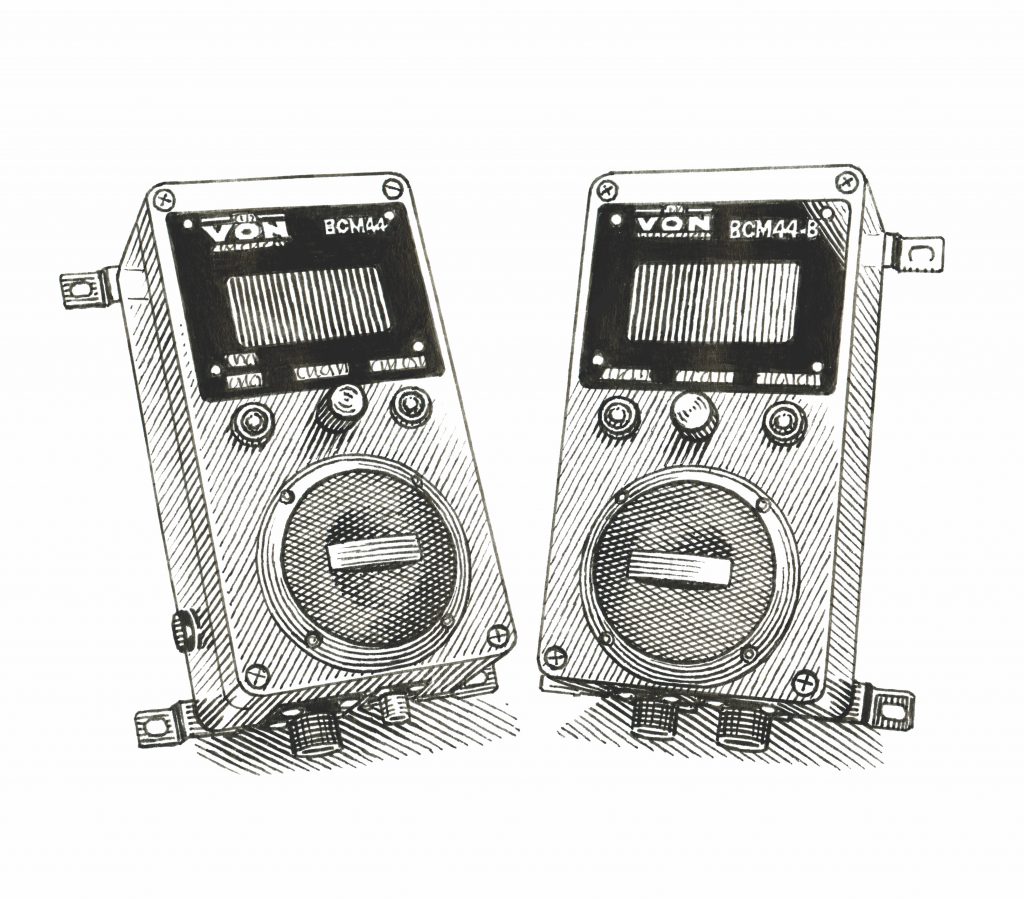

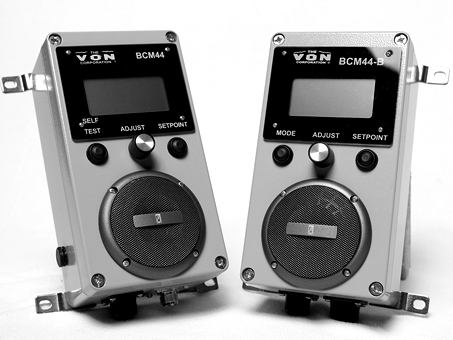

Model # BCM-44, BCM-44B

  • Extremely rugged and dependable design
  • Designed for operation in a variety of weather conditions
  • Automatic Safety Check for shorted or mis-wired test cables
  • Low Range: 0-99 microamps A.C. or D.C. with 0.1 μA resolution
  • High Range: 0-500 microamps A.C. or D.C. with 1 μ A resolution
  • Display variable set point

BCM-44 is a state-of-the-art current monitor designed for continuous operation during bare-hand work. The BCM has an adjustable set point between 1 and 500 microamperes AC or DC. A 106DB multi-tone horn sounds an audible warning if this current set point is ever exceeded during use.

BCM-44BCM-44B
Display TypeLiquid crystal display w/ heater Digits are 0.75 inches (2 cm)Liquid crystal display w/ heater Digits are 0.75 inches (2 cm)
Range0-400 microamperes AC or DC 1 microampere resolution0-400 microamperes AC or DC 1 microampere resolution
Voltage DropLess than 0.5 volts full scaleLess than 0.5 volts full scale
Measurement SystemTrue RMS within 1% of full scale (400uA) +/- 2 LSDTrue RMS within 1% of full scale (400uA) +/- 2 LSD
Set Point(s)Controls allow selection of six presets (27, 40, 66, 93, 133, 289 microamperes) or dial adjustable position
variable from 5 to 500 microamperes.		Controls allow selection of six presets (27, 40, 66, 93, 133, 289 microamperes) or dial adjustable position
variable from 5 to 500 microamperes.
Set Point AccuracyWithin two countsWithin two counts
Audible AlarmInternal 90dB vibrating horn sounds when current exceeds set point, or when measuring lead
is accidentally grounded.		Internal 90dB vibrating horn sounds when current exceeds set point, or when measuring lead
is accidentally grounded.
Power Requirements12 or 24 volts D.C., negative ground, draws 0.3 A (0.5 A @ 24V) with horn sounding and 0.06 A
under normal operation.		12 or 24 volts D.C., negative ground, draws 0.3 A (0.5 A @ 24V) with horn sounding and 0.06 A
under normal operation.
EnclosurePrecision die-cast aluminum case
4.72” (12cm) x 8.66” (22cm) x 3.14” (8cm) with external mounting brackets		Precision die-cast aluminum case
4.72” (12cm) x 8.66” (22cm) x 3.14” (8cm) with external mounting brackets
Weight5 Lbs. (2.3kg)5 Lbs. (2.3kg)
Input for TestUHF coaxial connector7 pin Amphenol receptacle with cap
Input for PowerFlange mounted 3 pin Amphenol receptacle with capFlange mounted 3 pin Amphenol receptacle with cap
Test Cable25’ (7.6m) shielded coaxial cable provided4’ (1.2m) shielded six conductor cable provided
Power Cable4’ (1.2m) three conductor cable provided4’ (1.2m) three conductor cable provided
Additional Features of the BCM 44B:
• Meter accuracy check using the internal precision
current source
• Metering of test circuit for boom metering bands
• Metering of test circuit for hoses
• Metering of test circuit for leveling rods or fi ber optics
• Total test including the sum of all three circuits
• Continuity check of each input circuit
